Descrição

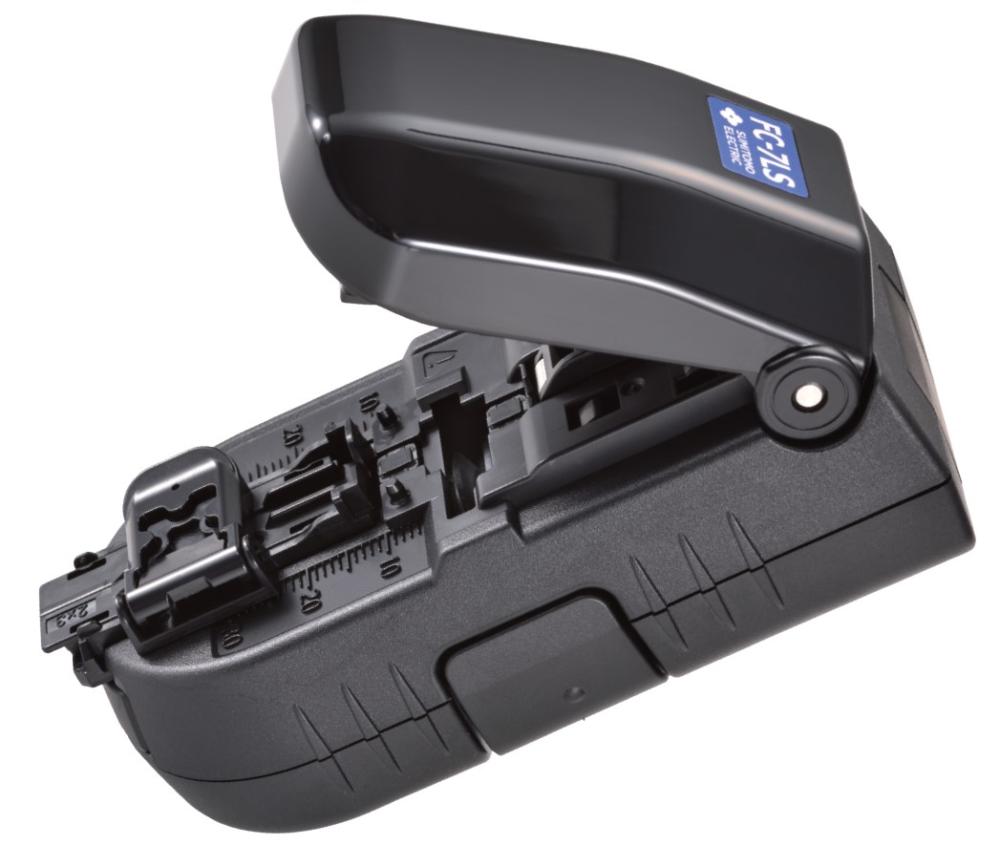

Clivador de Precisão FC-7LS Original – Sumitomo

Novo Clivador mecânico de alta precisão com coletor de resíduos da fibra. Possui ângulo típico de clivagem de 0.3º á 0,9º com apenas 1 passo

– Lâmina para 48.000 clivagens (2000 por posição – 24 posições)

– Diâmetro da casca: 125 μm

– Clivagem em ângulo de 0,3 á 0,9 graus

– Comprimento da Clivagem: 10 ~ 20 mm

Specifications
FC-7LS
Silica glass
125 m
0.2, 025, 0.9mm buffered fiber, 2 & 3mm jacketed cord
Rectangular drop cable (2x3mm), 3.5mm round drop cable
Single fiber
10~20mm
Single fiber adapter AP-FC7LS
Avg. 0.3 to 0.9 degrees
Pre-fitted , TR-FC7LS
51(W)×106(D)×83(H) mm, Approx. 124 g
FCP-20BL
– 1 0~50°C and 0~95% RH (non-condensing)
-40~80°C and 0~95% RH (non-condensing)
48,000 fibers (2,000 fibers × 24 positions)
Part number
Applicable fiber
Cleavelength
Fiber placing
Cleave angle (Typ.)
Off-cut collector / Fiber offcut bin
Dimensions and weight
Placeable blade
Operating condition
Storage condition
Blade life *1
Material
Cladding diameter
Coating diameter
Cable type
Fiber count
＊1 : Blade life may vary depending on the operating environment.
Standard package
Part No.
FC-7LS
CC-FC7LS
Q’ty
1pc
1pc
Part name
Main body
Carrying case
Optional accessories / Consumables
Part No.
AP-FC7LS
TR-FC7LS
FCP-20BL
Note
–
10 pcs per set
Common for FC-6+ series
Part name
Single fiber adapter
Fiber offcut bin
Replacement blade
Fiber holders
FHS-025
Single
250um
FHS-09
Single
900um
FHS-025/LB5
Single 900um
Loose buffered fiber
10mm
FHD-1
Single 250um Drop
/ Indoor cable
FHC-3
3mm
cable
